Solar Brackets Forming Machine

Solar Mounting Structure Forming Machine
Photovoltaic Bracket Making Forming Machine
Machine use Raw material thickness 1.5-2.5mm
Machine produces four models

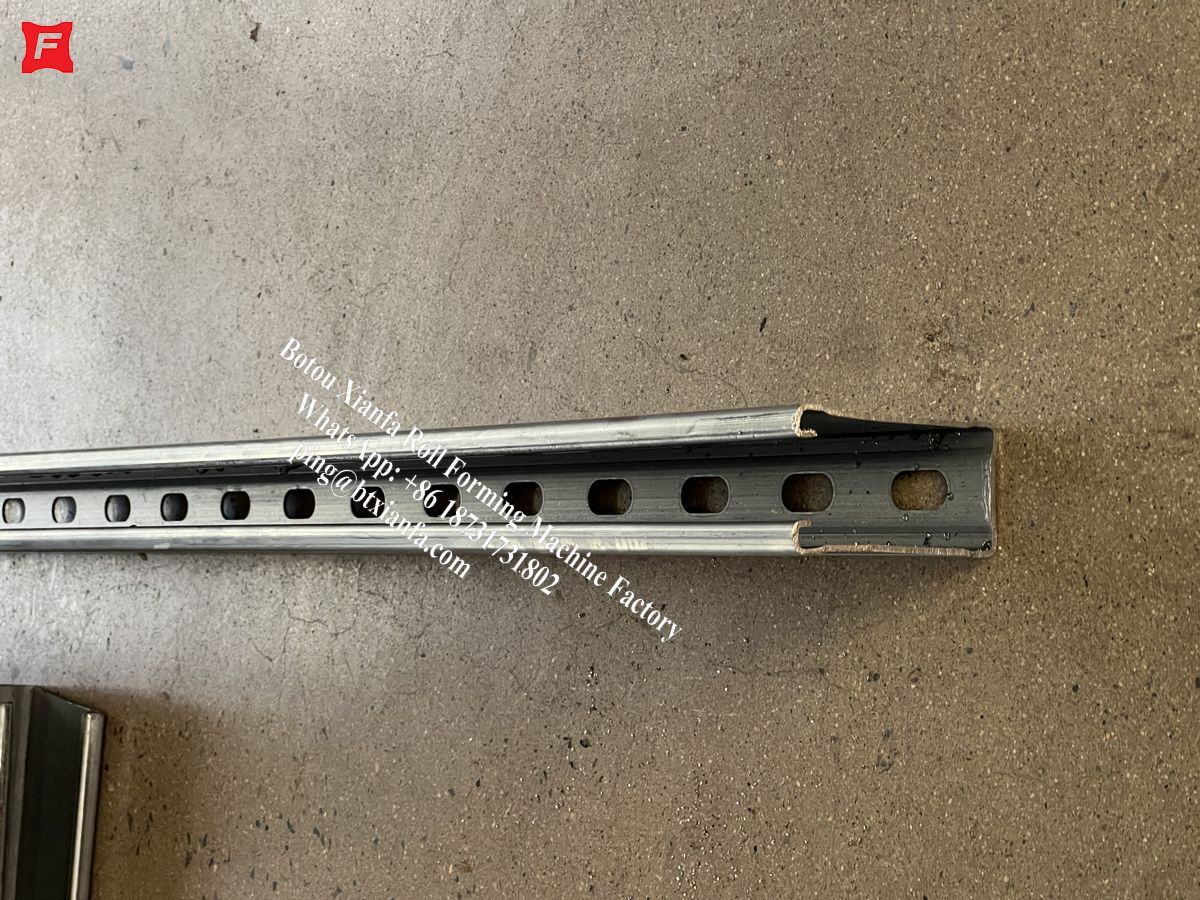

41x21/41X41/41X62/41X82
We can design machines according to the needs of different customers

Availability:

Quantity:



Inquire Add to Basket

Model:
XF41x21/41X41/41X62/41X82
Brand:
XF
Code:
8455221000

Product Description

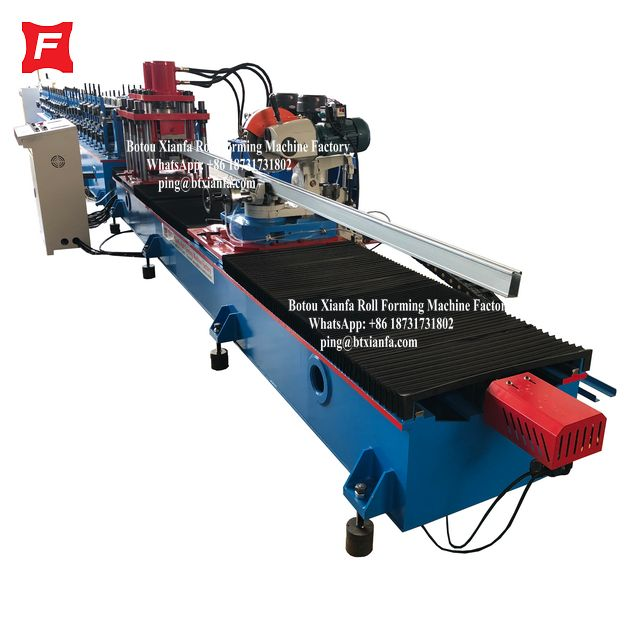

Solar Brackets Forming Machine

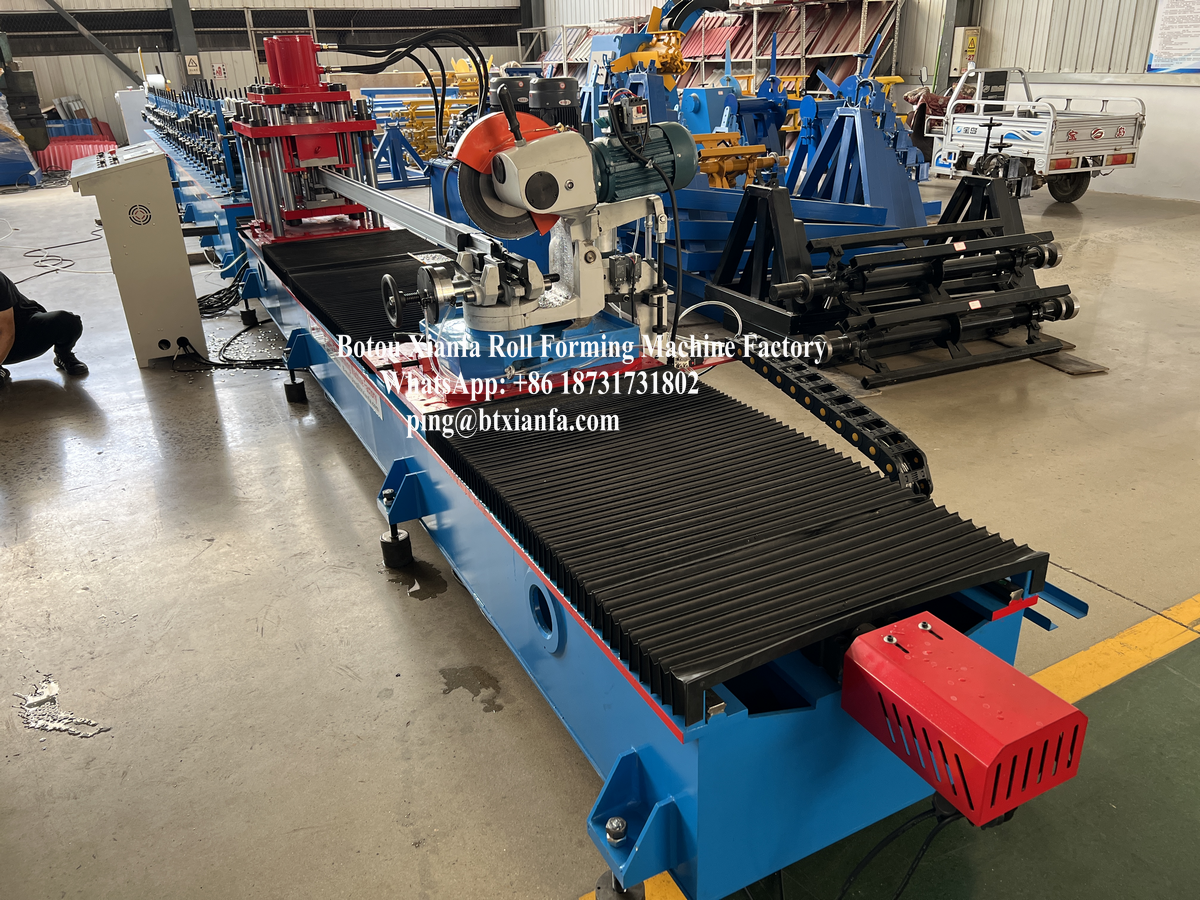

Solar Mounting Brackets Forming Machine

Solar Brackets Forming Machine Machine Included Part

Decoiler--Feeding Platform--Forming--Cutting--Receiving Platform--Computer Control Cabinet--Hydraulic System

Solar Brackets Forming Machine Main Technical Parameters

Suitable Material	GI/PPGI
Strength Adaptive Material	Q235-300
Thickness Raw Material	1.5-2.5mm
Production Speed	25m/min
Total Power	18.5+18.5+5.5+5.5+1.5KW
Width Raw Material	98/138/180/220mm
Transmission Mode	Gear Transmission
Roller Material	Material of rollers:Bearing steel (liquid fire treatment) The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

You want to know more about machines

Please contact me.

I will send you quotation for your reference
